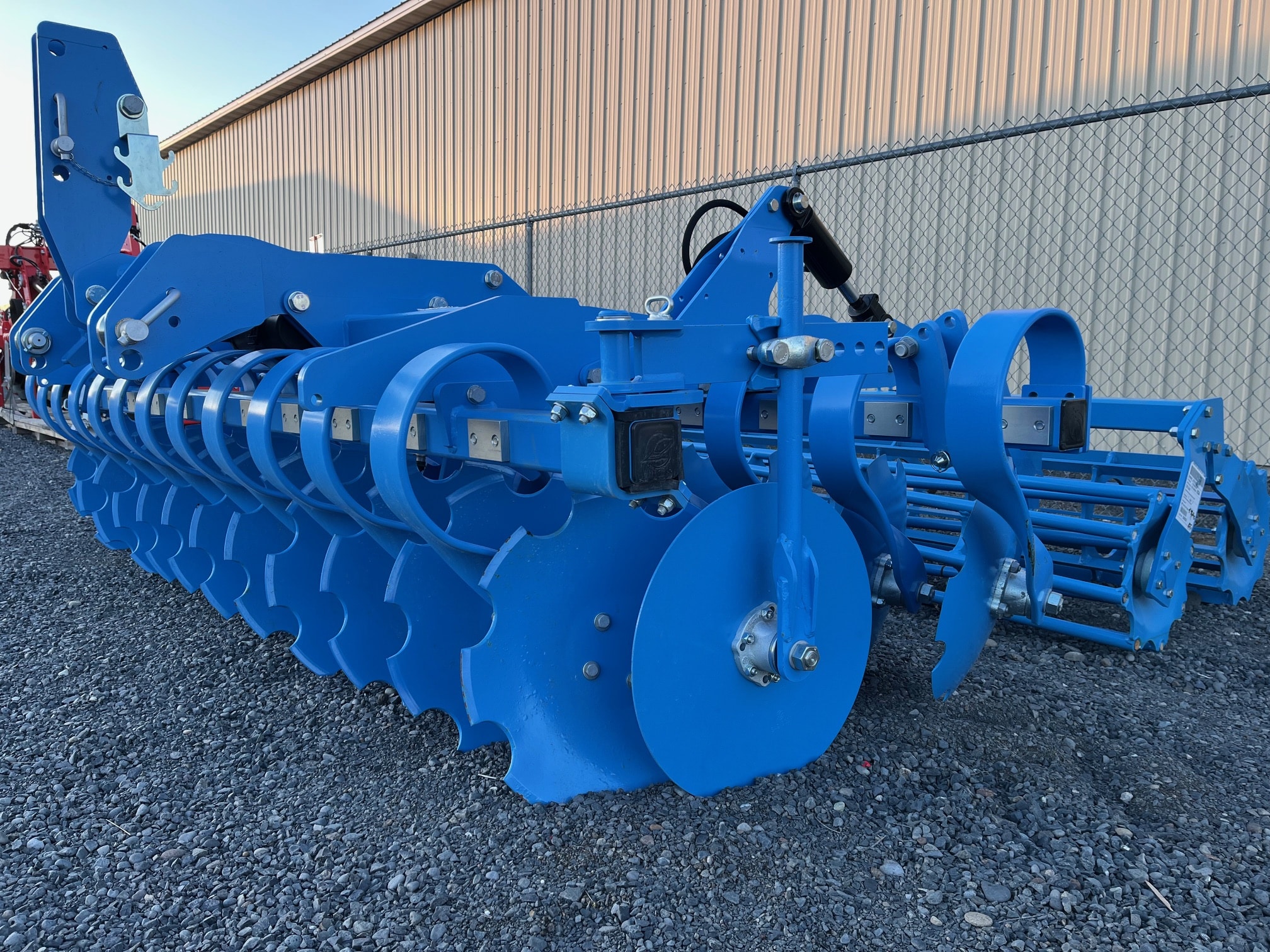

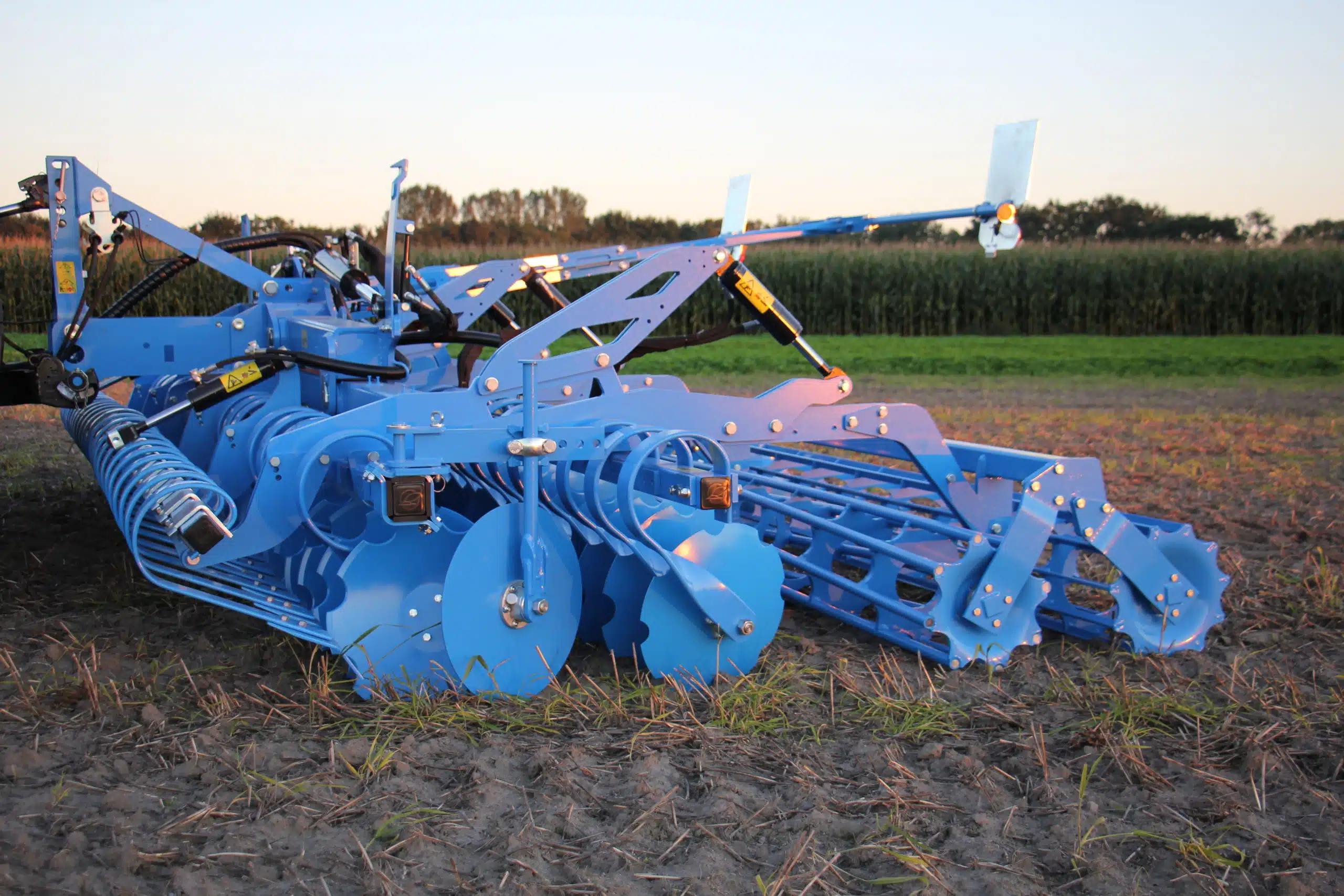

The LEMKEN Heliodor 9 is a compact, high-speed disc harrow designed for shallow tillage, residue incorporation, and seedbed preparation. Its lightweight, compact design allows for high working speeds with relatively low horsepower requirements, making it an efficient option for covering acres quickly.

Two rows of 20″ serrated concave discs provide consistent soil engagement and mixing while helping incorporate crop residue and control emerging weeds. Each disc is individually mounted on a leaf spring for precise depth control, reliable tracking, and protection during operation.

The Heliodor 9 is well suited for shallow stubble cultivation in light to medium soils and can also be used for seedbed preparation after plowing or in mulch-seeding systems.

• Two rows of 20″ serrated concave discs
• Working depth up to approximately 4.7″
• High-speed, low-draft design
• Excellent for shallow stubble cultivation and residue incorporation
• Creates an even, well-prepared seedbed
• Individual leaf-spring disc suspension for precise depth control
• Multiple working widths and configurations available

Demos are available upon request.
